01
Blow Molding
Forms plastic diffusers by extrusion blow molding with controlled heating, mold closing, air blowing and cooling.
Industrial Equipment Sale
Equipment for LED Diffuser Manufacturing
Complete industrial equipment package for forming, printing and processing plastic diffusers for ceiling smart and LED luminaires: blow molding machine, JD70100A screen printing machine, air compressor and smart lighting dosing machine.
Complete Production Line Package
The equipment is intended for industrial production of diffuser components used in ceiling LED and smart luminaires.
02
Screen Printing
Applies decorative patterns, logos and ornaments onto diffuser surfaces using screen printing technology.
03
Compressed Air
Supplies stable compressed air required for blowing, pneumatic movement and process stability.
04
Dosing Process
Supports smart lighting assembly by controlled dosing of production materials during luminaire preparation.

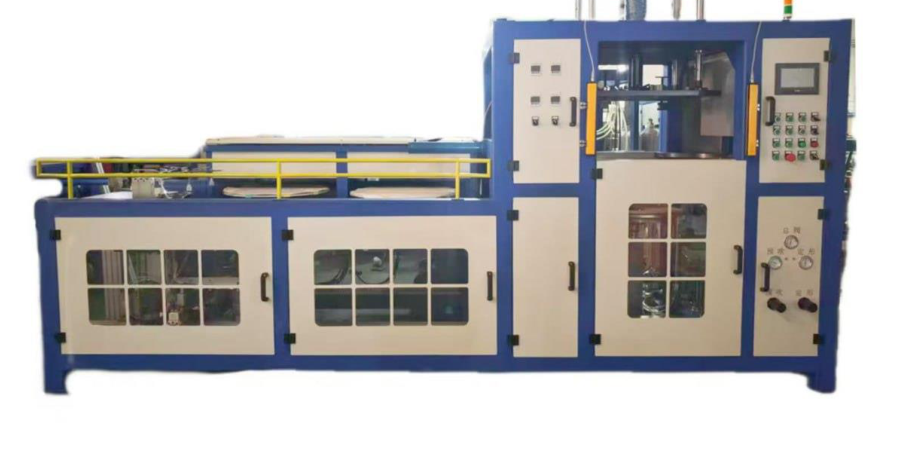

Blow Molding Machine for Diffuser Manufacturing
Industrial machine for manufacturing plastic diffusers for ceiling smart and LED luminaires. The machine forms thermoplastic material into diffuser shapes by extrusion blow molding.
Internal code120491
TechnologyExtrusion blow molding
Product sizes230, 300, 350 and 450 mm diffusers
Control systemXINJE touch screen PLC controller
Power supply380 V / 50 Hz, three phase
Approx. dimensions4500 x 1800 x 2300 mm
- Extruder heats and plasticizes thermoplastic granules to form a molten tubular parison.
- Mold closing mechanism clamps the parison inside the diffuser mold.
- Compressed air expands the heated plastic against the internal surface of the mold.
- Cooling system fixes the diffuser geometry before demolding and trimming.

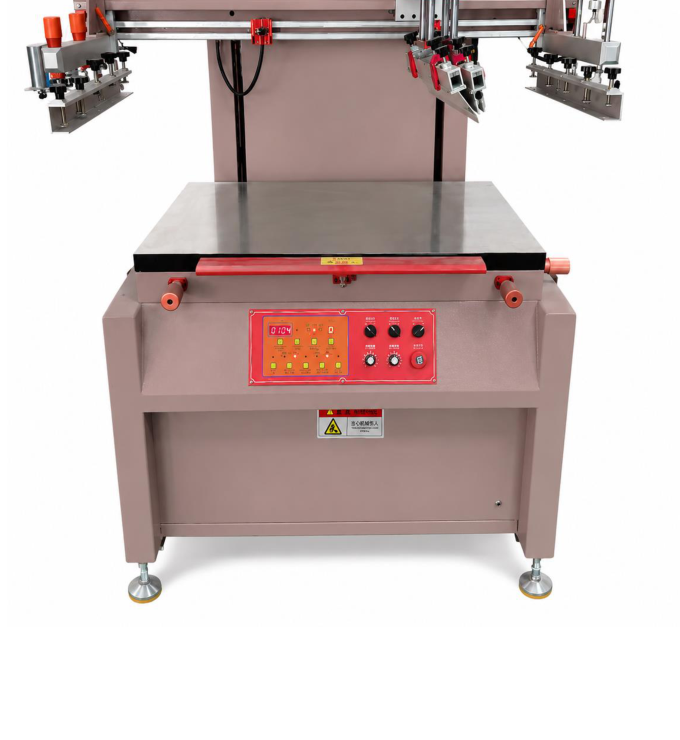

JD70100A Screen Printing Machine
Table-type screen printing machine for applying patterns, logos and decorative graphics onto plastic diffuser surfaces for ceiling LED luminaires.
Internal code120471
ModelJD70100A, 700 x 1000 mm table
Print area500 x 700 mm
Air pressure5-6 kg/cm2, 0.49-0.59 MPa
Power supply220 V / 50 Hz, single phase
OutputUp to 600 prints per hour
- Screen frame holder fixes the stencil and allows accurate registration with the diffuser position.
- Squeegee carriage moves across the screen and presses ink through the open mesh areas.
- Pneumatic cylinders lower and lift the screen during each automatic print cycle.
- Adjustable table, supports and clamps help maintain repeatable print positioning.
Air Compressor
Compressed air source for the diffuser production line. It is required for the blow molding process and for pneumatic operations of connected equipment.
FunctionCompressed air supply
Working roleBlowing and pneumatic movement
Line connectionBlow molding machine pneumatic system
Process valueStable pressure for repeatable forming
- Supplies air pressure for expanding the heated parison inside the diffuser mold.
- Supports pneumatic mechanisms used for lifting, clamping and auxiliary movement.
- Works together with the air receiver to reduce pressure pulsation during operation.
Dosing Machine for Smart Lighting
Auxiliary production equipment for controlled material dosing during preparation and assembly of smart lighting products.
Equipment typeDosing machine
ApplicationSmart luminaire manufacturing
PurposeControlled dispensing of process material
Production roleConsistent assembly quality
- Used as part of the smart lighting production workflow after forming and preparation operations.
- Helps standardize material quantity and improve repeatability in serial production.
- Suitable for integration into a broader LED luminaire assembly line.
How the Diffuser Line Works
The machines cover the key production stages: plastic forming, cooling, trimming, surface decoration and preparation for further assembly.
Material Forming
Thermoplastic granules are heated in the extruder. The molten material is shaped into a tubular parison and enclosed by the diffuser mold.
Blowing and Cooling
Compressed air expands the softened plastic inside the mold. The diffuser cools, keeps its shape and is removed for trimming.
Printing and Assembly
The screen printing machine applies decorative patterns. The dosing machine supports consistent smart luminaire assembly operations.
Main Technical Overview
Summary of the main equipment units included in the production offer.
| Equipment | Main purpose | Key mechanisms | Application |
|---|---|---|---|
| Blow Molding Machine | Production of plastic diffusers by extrusion blow molding. | Extruder, heating zones, mold closing unit, compressed air system, cooling system, XINJE controller. | Diffusers for ceiling LED and smart luminaires. |
| JD70100A Screen Printing Machine | Application of patterns, logos and decorative graphics onto diffusers. | Worktable, stencil frame holder, squeegee carriage, pneumatic lifting cylinders, control panel. | Decorated diffuser surfaces for lighting products. |
| Air Compressor | Supply of compressed air for forming and pneumatic operations. | Compression unit, air line, pressure stabilization through receiver connection. | Blowing, lifting, clamping and process support. |
| Dosing Machine | Controlled material dispensing for smart lighting production. | Dosing head, metering control, work platform and production interface. | Smart luminaire preparation and assembly. |
Delivery and Sale Notes
The equipment is offered as an industrial production package. Final configuration, availability, packing and shipping details should be confirmed before purchase.
A
Industrial Use
Designed for factory production of diffuser components and LED luminaire parts.
B
Production Setup
The line can be used for diffuser sizes 230 mm, 300 mm, 350 mm and 450 mm, depending on installed molds.
C
Operator Control
Process settings are adjusted through machine control panels and production parameters.
D
Contact Required
Please contact LUMIO to confirm the equipment list, pricing, packing and export documentation.
Contact LUMIO
For price, inspection, packing information and export documentation, please contact our team directly.
